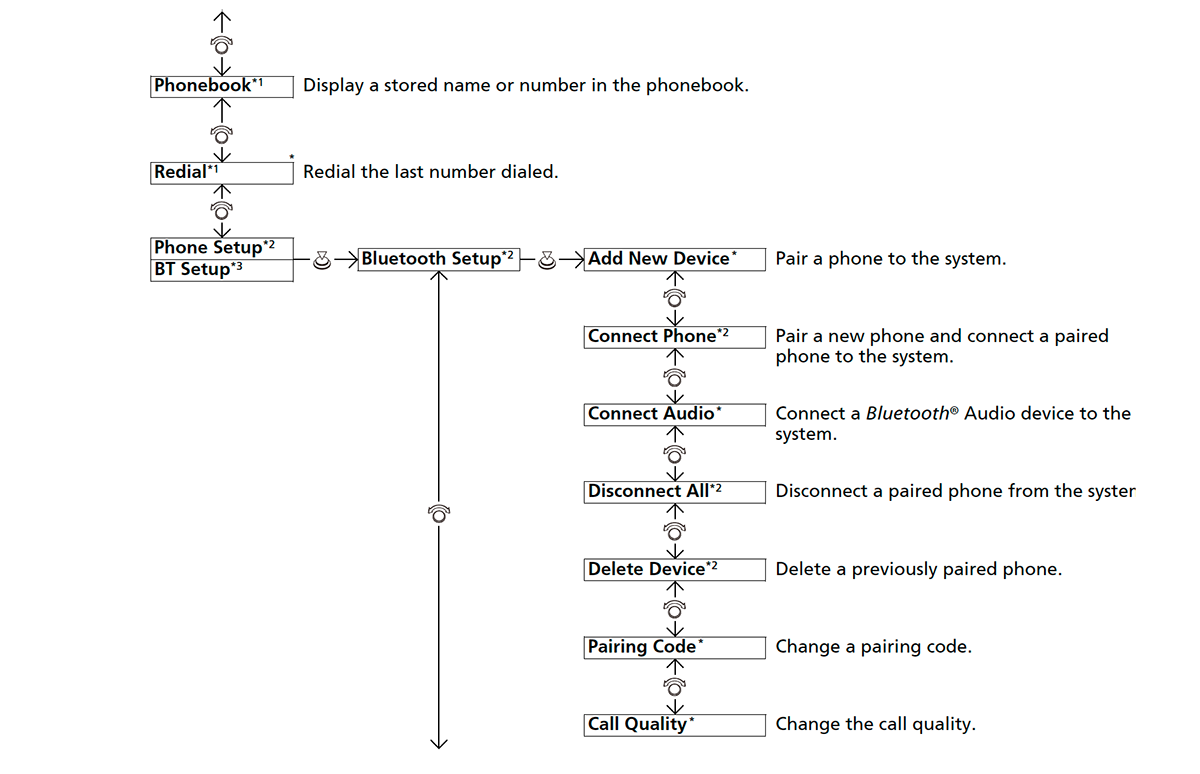

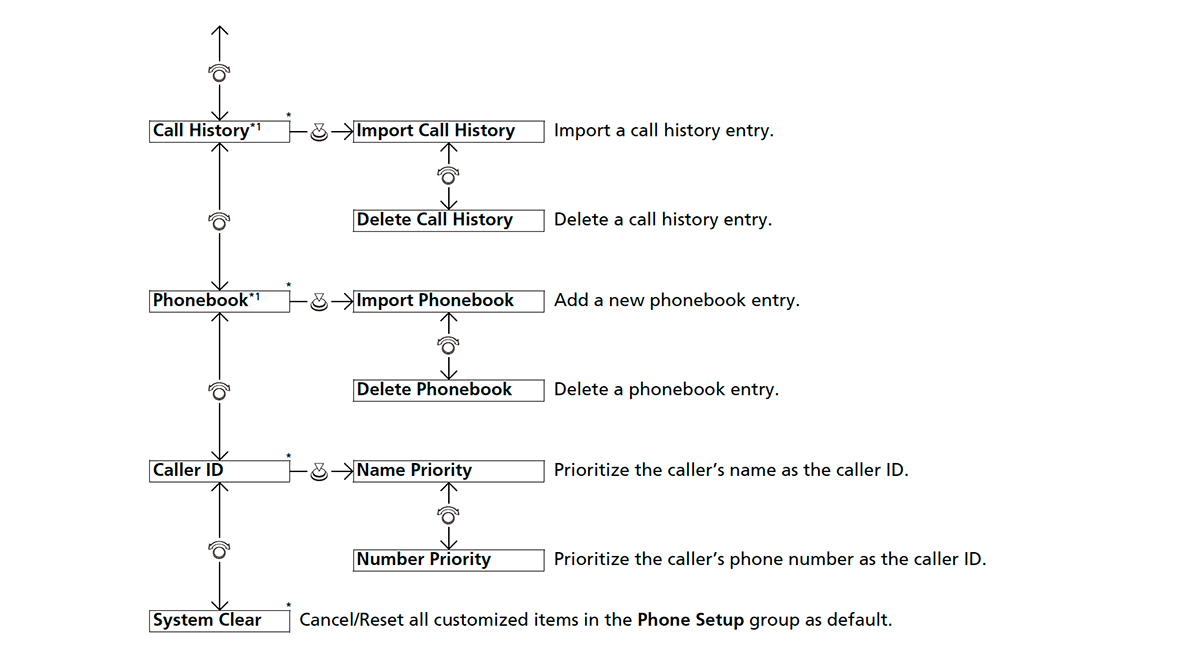

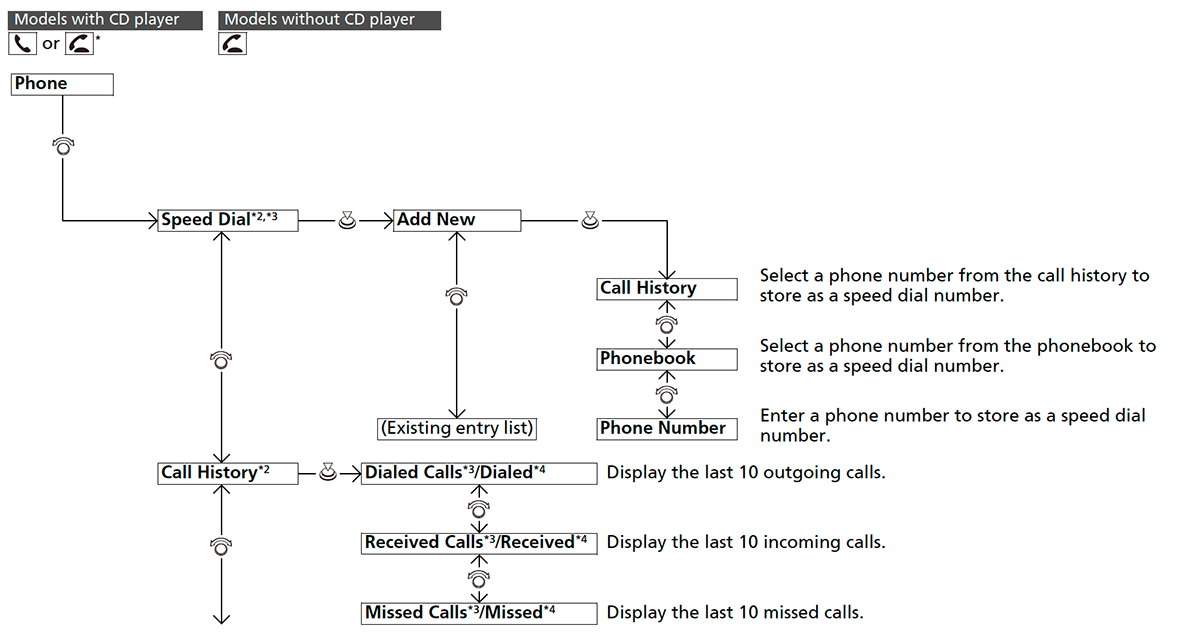

HFT Menus

The ignition switch must be in ACCESSORY I or ON II*1 to use the system.

*1: Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
*2: Appears only when a phone is connected to the system.
*3: Models with CD player
*4: Models without CD player

*1: Appears only when a phone is connected to the system.
*2: Models with CD player
*3: Models without CD player

*1: Appears only when a phone is connected to the system.
*2: Models with CD player

*1: Appears only when a phone is connected to the system.

Detail
To use HFT, you must first pair your Bluetooth-compatible mobile phone to the system while the vehicle is parked.

These indications are used to show how to operate the LIST/SELECT (selector) knob or the LIST/SEL (selector) knob.
Rotate to select.
Press to enter.

Phone Setup

Models with CD player
Detail
Your Bluetooth-compatible phone must be paired to the system before you can make and receive hands-free calls.

Phone Pairing Tips:
  • You cannot pair your phone while the vehicle is moving.
  • Up to three phones can be paired.
  • Your phone’s battery may drain faster when it is paired to the system.

To pair a mobile phone (No phone has been paired to the system)

  1. Press the (Phone) button or the button*.
  2. Rotate to select Yes, then press .
  3. Make sure your phone is in search or discoverable mode, then press .
    • HFL/HFT automatically searches for a Bluetooth device.
  4. The system gives you a pairing code on your phone.When your phone prompts you, input the four-digit pairing code.

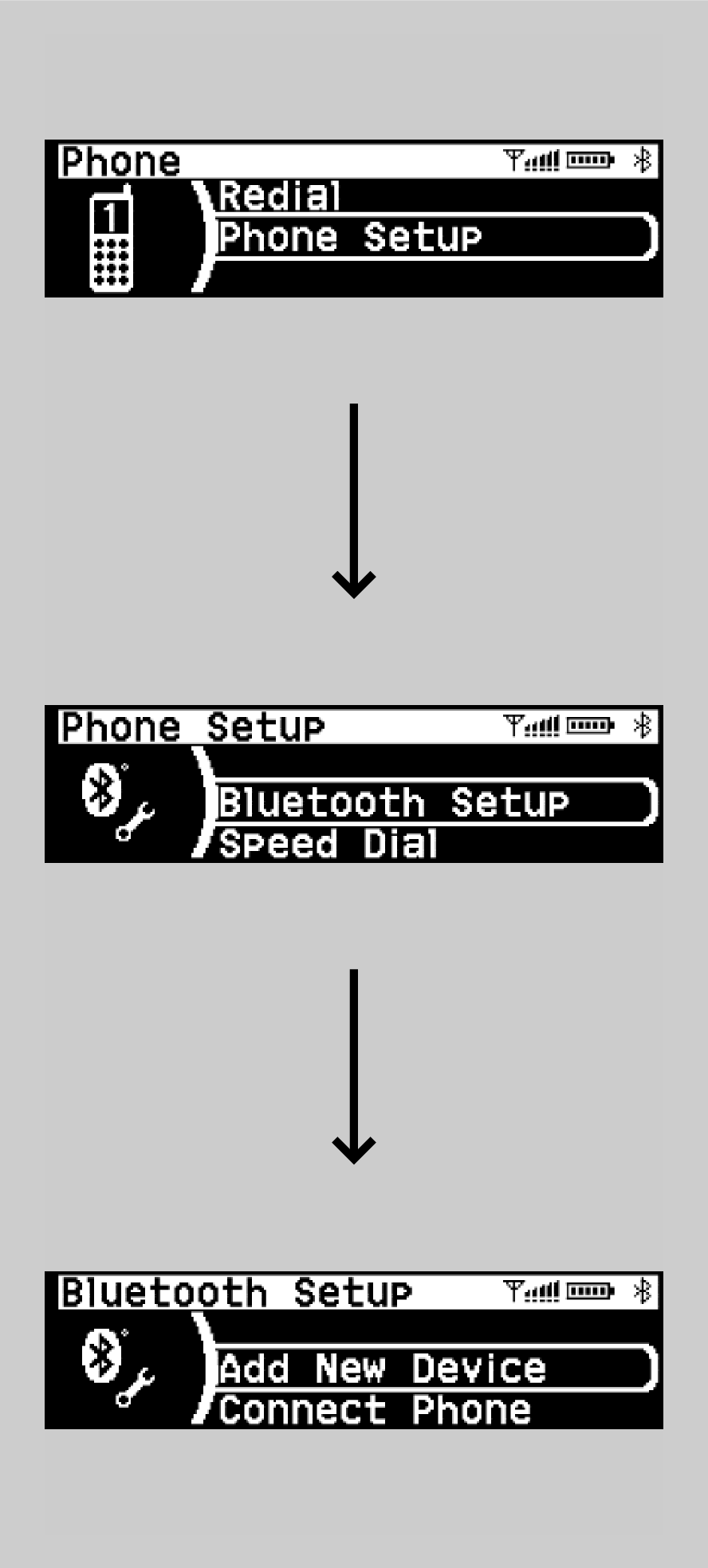

To pair a mobile phone (when a phone has already been paired to the system)

  1. Press the (Phone) button or the button*.
    • If a prompt appears asking to connect to a phone, select No and proceed with step 2.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Bluetooth Setup, then press .
  4. Rotate to select Add New Device, then press .
  5. Make sure your phone is in search mode, then press .
  6. The system gives you a pairing code on your phone.When your phone prompts you, input the four-digit pairing code.

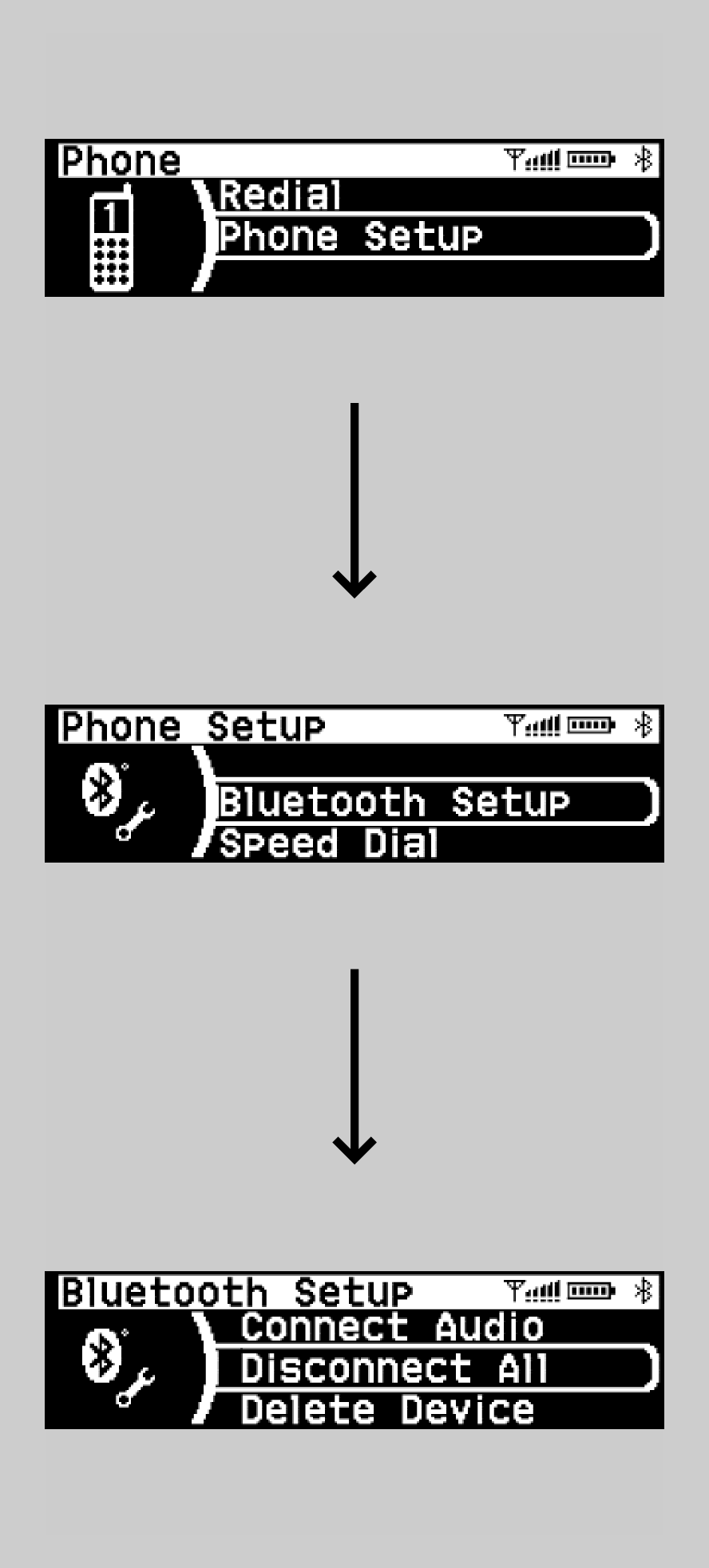

To disconnect the paired phone

  1. Press the (Phone) button or the button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Bluetooth Setup, then press .
  4. Rotate to select Disconnect All, then press .

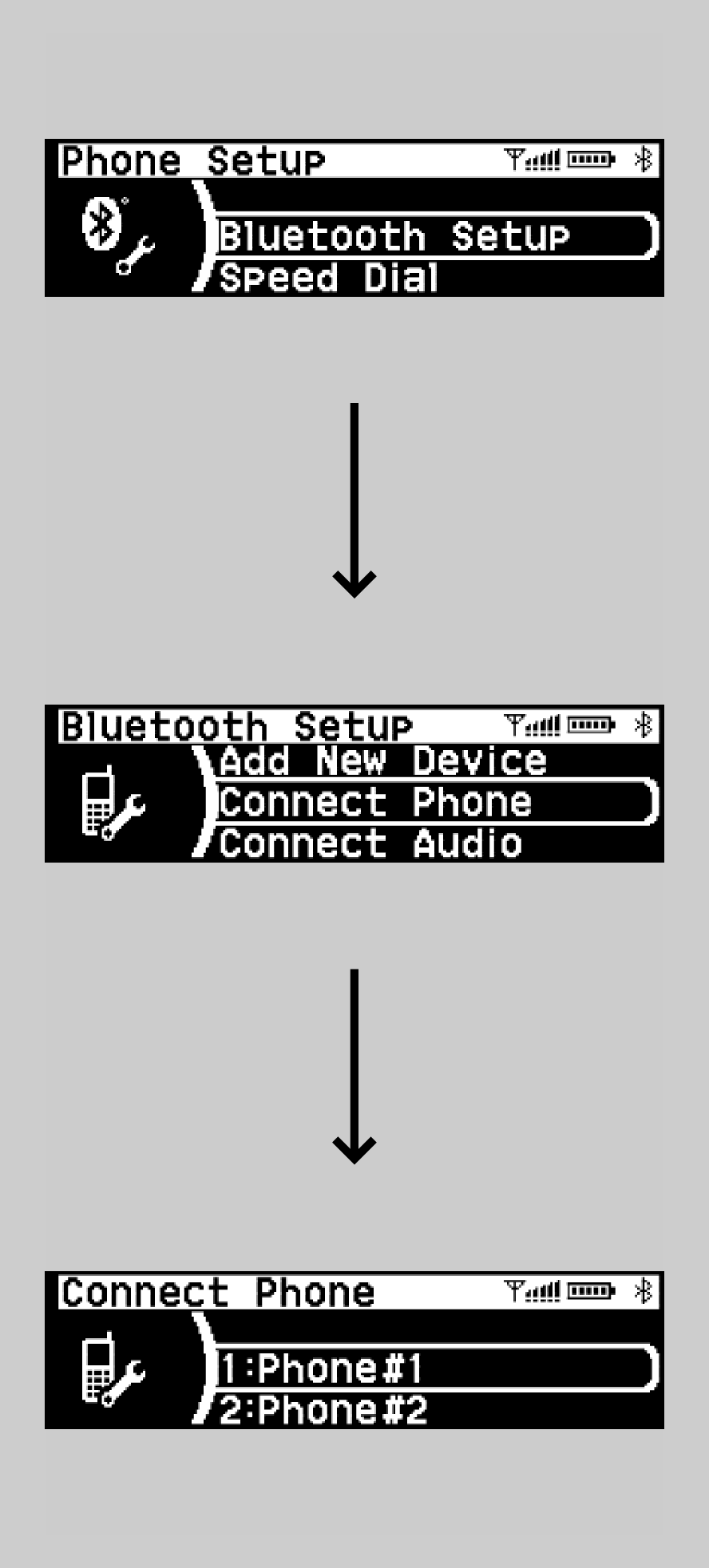

To change the currently paired phone

  1. Press the (Phone) button or the button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Bluetooth Setup, then press .
  4. Rotate to select Connect Phone, then press .
    • The screen changes to a device list.
  5. Rotate to select a desired device name, then press .

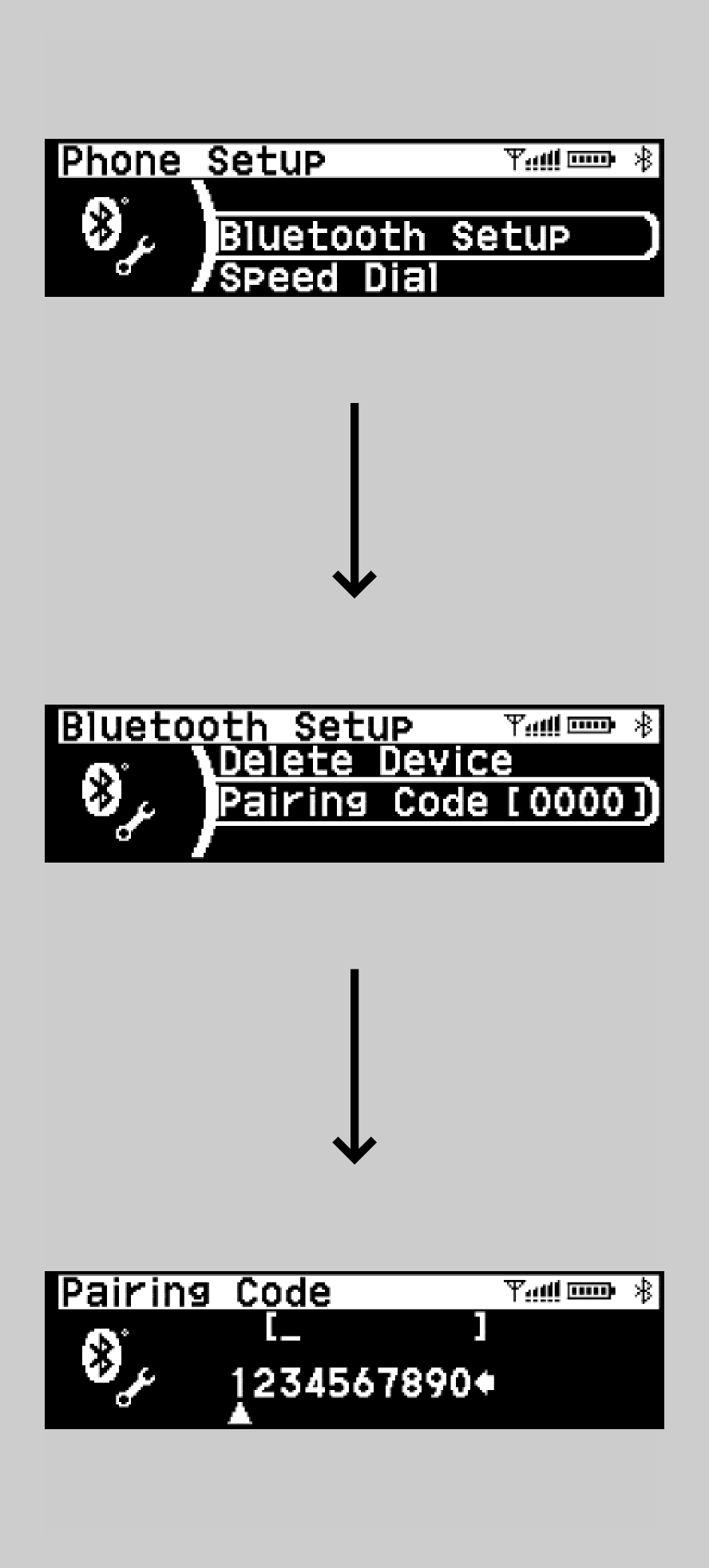

To change the pairing code setting

  1. Press the (Phone) button or the button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Bluetooth Setup, then press .
  4. Rotate to select Pairing Code, then press .
  5. Input a new pairing code, then press .

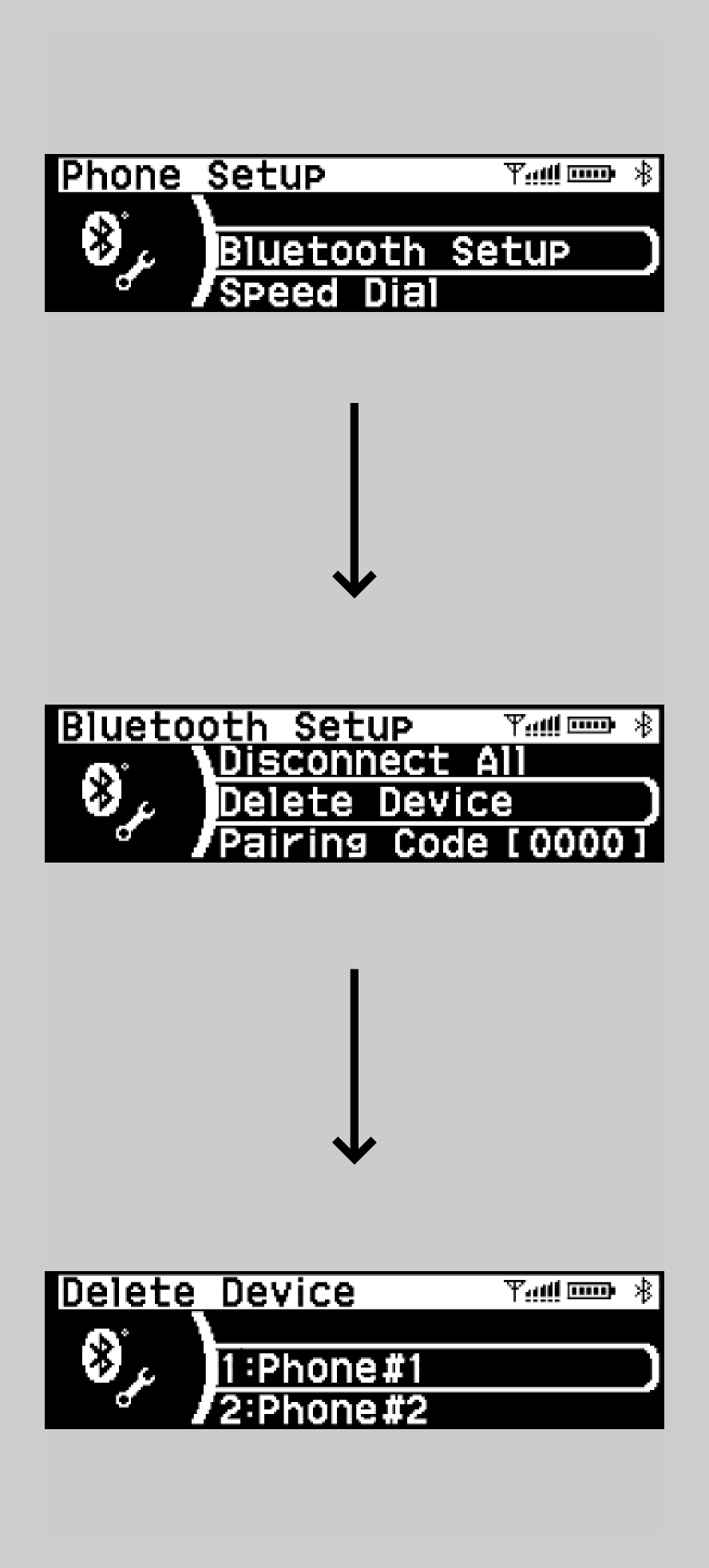

To delete a paired phone

  1. Press the (Phone) button or the button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Bluetooth Setup, then press .
  4. Rotate to select Delete Device, then press .
    • The screen changes to a device list.
  5. Rotate to select a phone you want to delete, then press .
  6. A confirmation message appears on the screen. Rotate to select Yes, then press .
Models without CD player
Detail
Your Bluetooth-compatible phone must be paired to the system before you can make and receive hands-free calls.

Phone Pairing Tips:
  • You cannot pair your phone while the vehicle is moving.
  • Up to three phones can be paired.
  • Your phone’s battery may drain faster when it is paired to the system.

To pair a mobile phone

  1. Press the button.
  2. Rotate to select PAIR YES, then press .
  3. Make sure your phone is in search mode, then press .
  4. The system gives you a pairing code on your phone.When your phone prompts you, input the four-digit pairing code.

To disconnect the paired phone

  1. Press the button.
  2. Rotate to select BT Setup, then press .
  3. Rotate to select Disconnect, then press .

To delete a paired phone

  1. Press the button.
  2. Rotate to select BT Setup, then press .
  3. Rotate to select Disconnect, then press .
    • The screen changes to a device list.
  4. Rotate to select a phone you want to delete, then press .

To change call quality

  1. Press the button.
  2. Rotate to select BT Setup, then press .
  3. Rotate to select Call Quality, then press .
  4. Rotate to select a phone you want to set, then press .

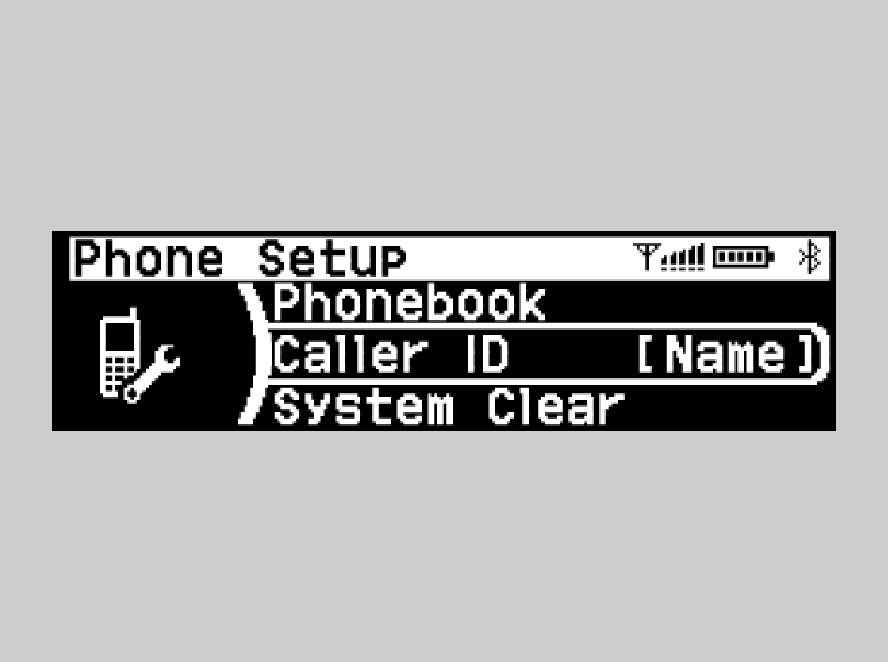

Caller’s ID Information

Models with CD player

You can select a caller’s information to be displayed when you have an incoming call.

  1. Press the (Phone) button or the button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Caller ID, then press .
  4. Rotate to select a mode you want, then press .
Detail
Name Priority:
A caller’s name is displayed if it is stored in the phonebook.

Number Priority:
A caller’s phone number is displayed.

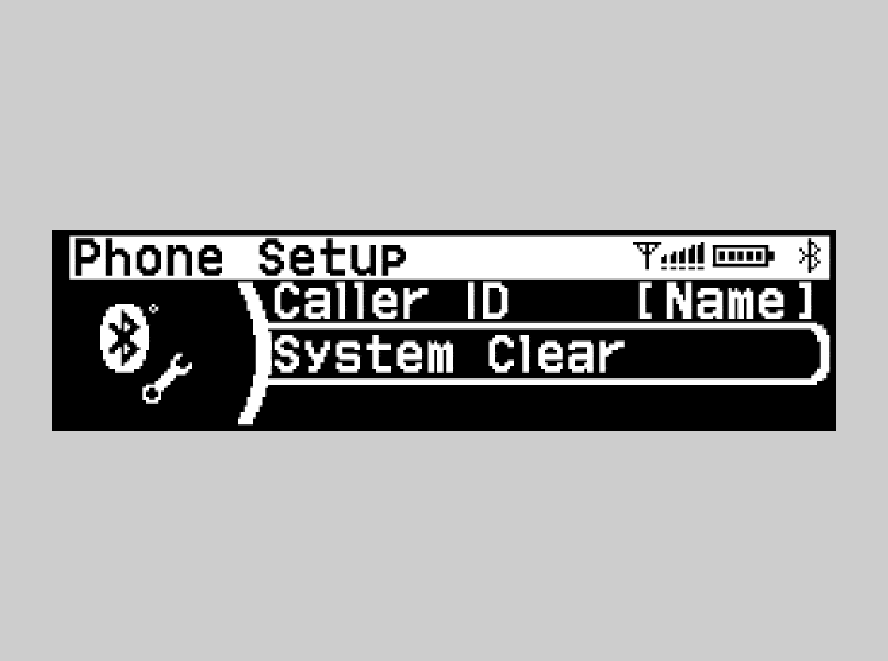

To Clear the System

Models with CD player

All speed dial entries, all imported phonebook data, all call history data, paired phones, pairing codes, caller’s ID settings, and volume settings are reset as default.

  1. Press the (Phone) button or the button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select System Clear, then press .
  4. Rotate to select Yes, then press .
  5. A notification appears on the screen. Press .

Cellular Phonebook

Models with CD player

When your phone is paired, the contents of its phonebook are manually imported to the system.

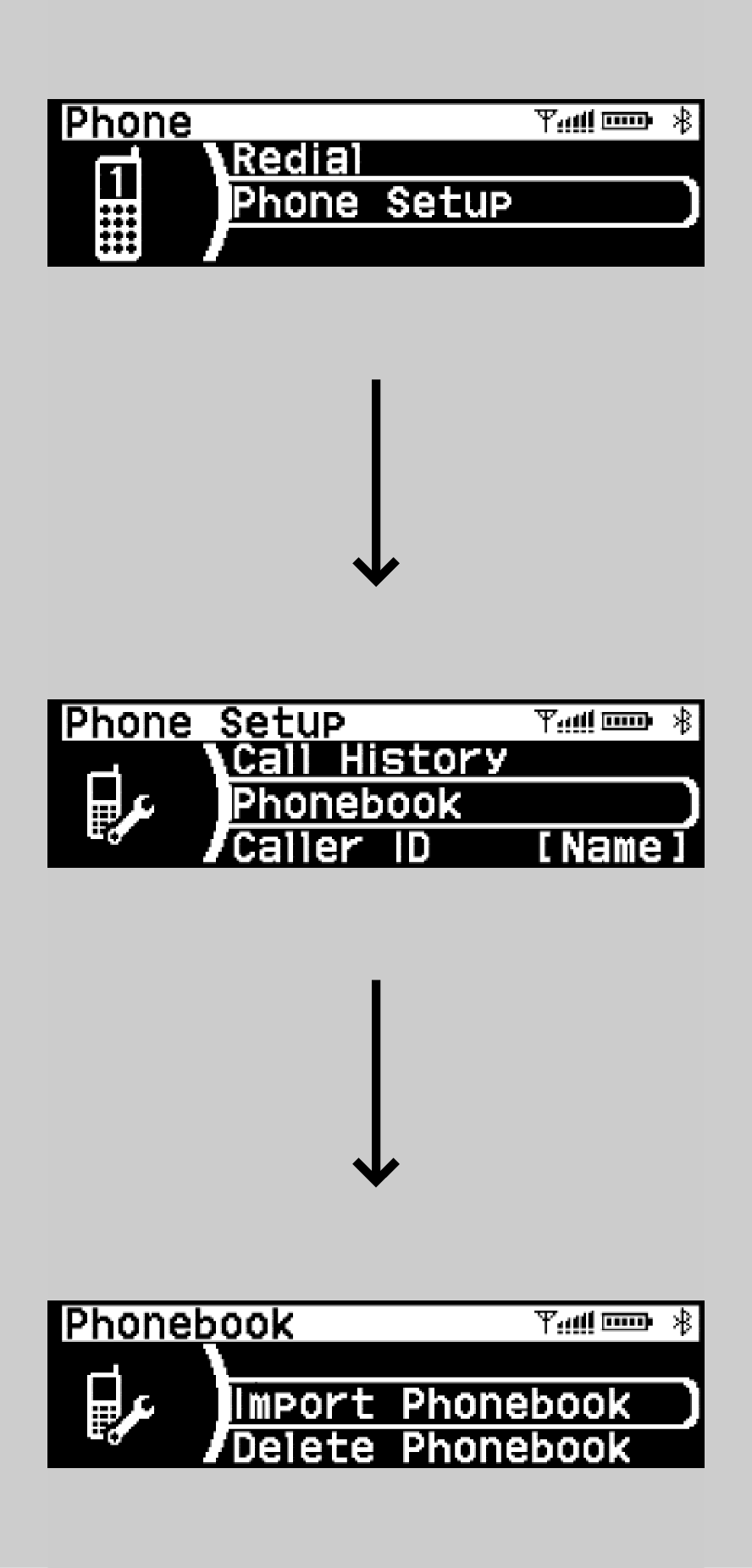

To import the phonebook data of the mobile phone

  1. Press the button or button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Phonebook, then press .
  4. Rotate to select Import Phonebook, then press .
  5. Rotate to select Yes, then press .
    • The system will begin importing the phonebook data.

To delete the imported phonebook data

  1. Press the button or button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Phonebook, then press .
  4. Rotate to select Delete Phonebook, then press .
  5. Rotate to select Yes, then press .
Detail
For a list of this feature capability, ask a dealer.

Call History

Models with CD player

When your phone is paired, the contents of its call history are manually imported to the system.

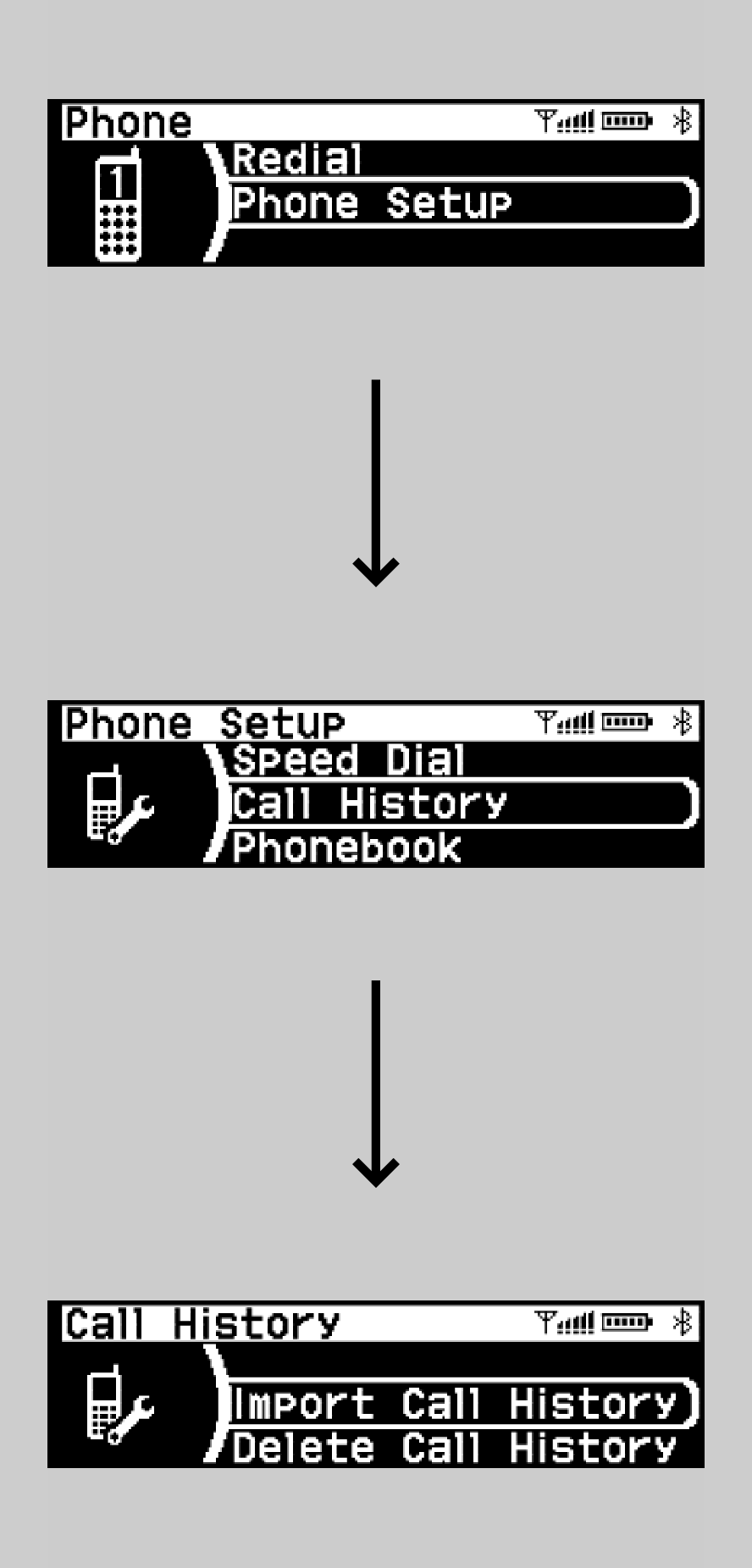

To import the call history data of the mobile phone

  1. Press the button or button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Call History, then press .
  4. Rotate to select Import Call History, then press .
  5. Rotate to select Yes, then press .
    • The system will begin importing the phonebook data.

To delete the imported call history data

  1. Press the button or button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Call History, then press .
  4. Rotate to select Delete Call History, then press .
  5. Rotate to select Yes, then press .
Detail
For a list of this feature capability, ask a dealer.

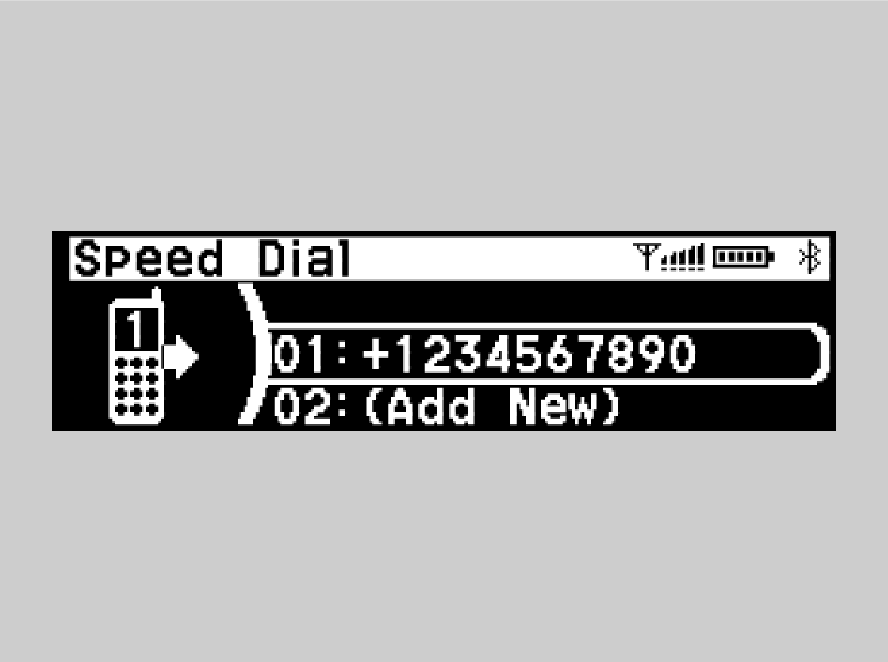

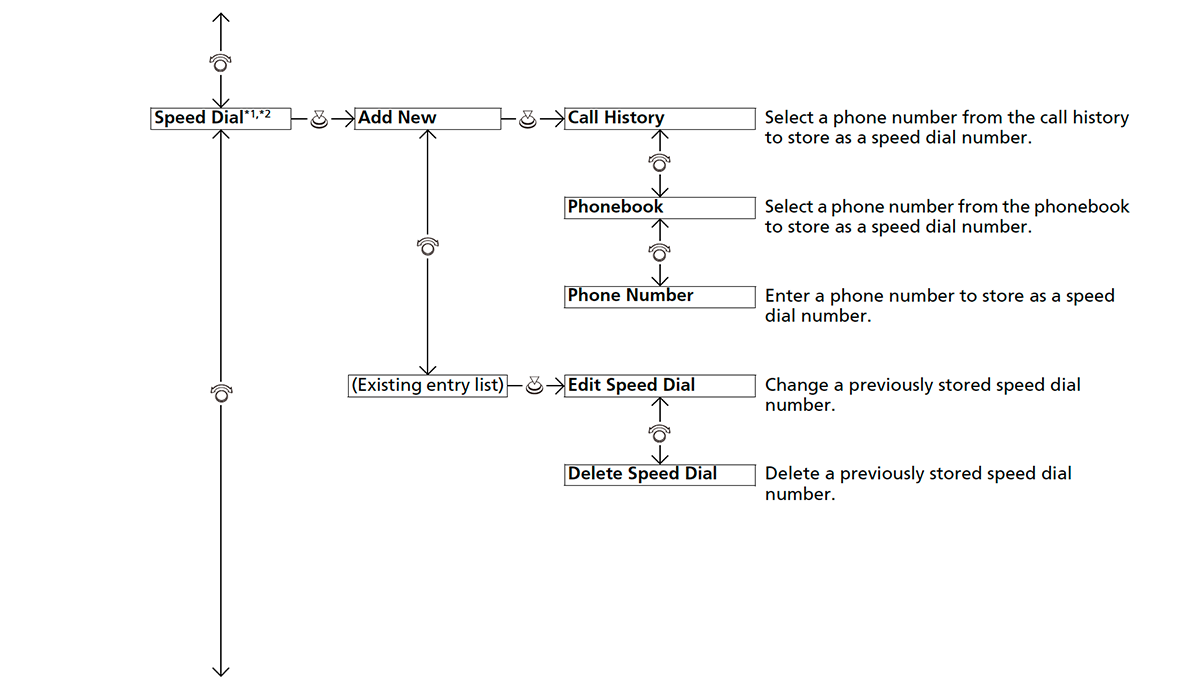

Speed Dial

Models with CD player

Up to 15 speed dial numbers can be stored per phone.

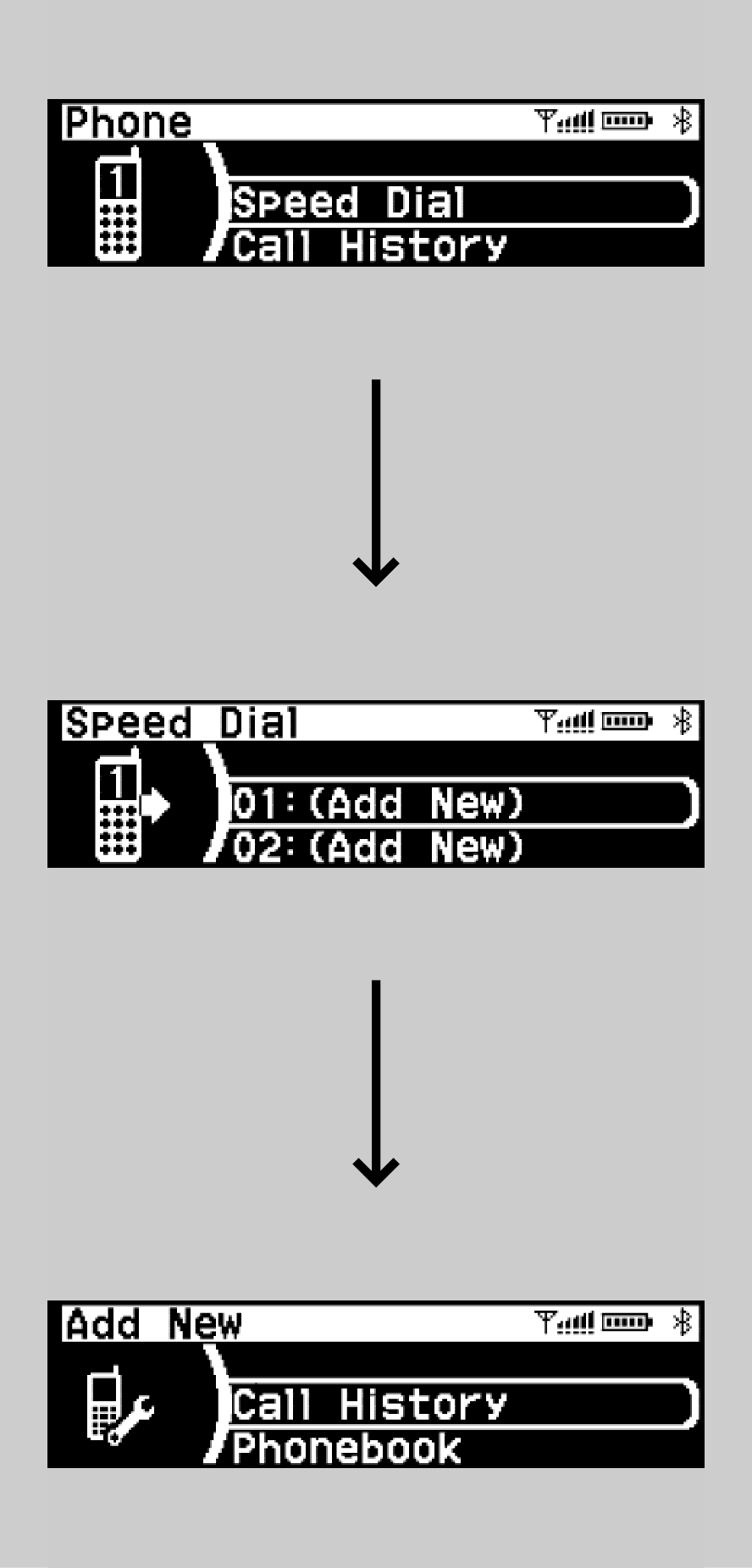

To store a speed dial number:
  1. Press the (Phone) button or the button*.
  2. Rotate to select Speed Dial, then press .
    • The screen changes to a speed dial list.
  3. Rotate to select Add New, then press .From Call History:
    • Select a number from the call history.
    From Phonebook:
    • Select a number from the connected mobile phone’s imported phonebook.
    From Phone Number:
    • Input the number manually.

To edit a speed dial

  1. Press the button or button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Speed Dial, then press .
  4. Select an existing speed dial entry.
  5. Rotate to select Edit Speed Dial, then press .
  6. Select a new speed dial number, then press .

To delete a speed dial

  1. Press the button or button*.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Speed Dial, then press .
  4. Select an existing speed dial entry.
  5. Rotate to select Delete Speed Dial, then press .
  6. Select a speed dial number you want to delete, then press .

Making a Call

You can make calls by using the following:
  • Call History
  • Phonebook
  • Speed Dial*
  • Redial*
Detail
Once a call is connected, you can hear the voice of the person you are calling through the audio speakers.

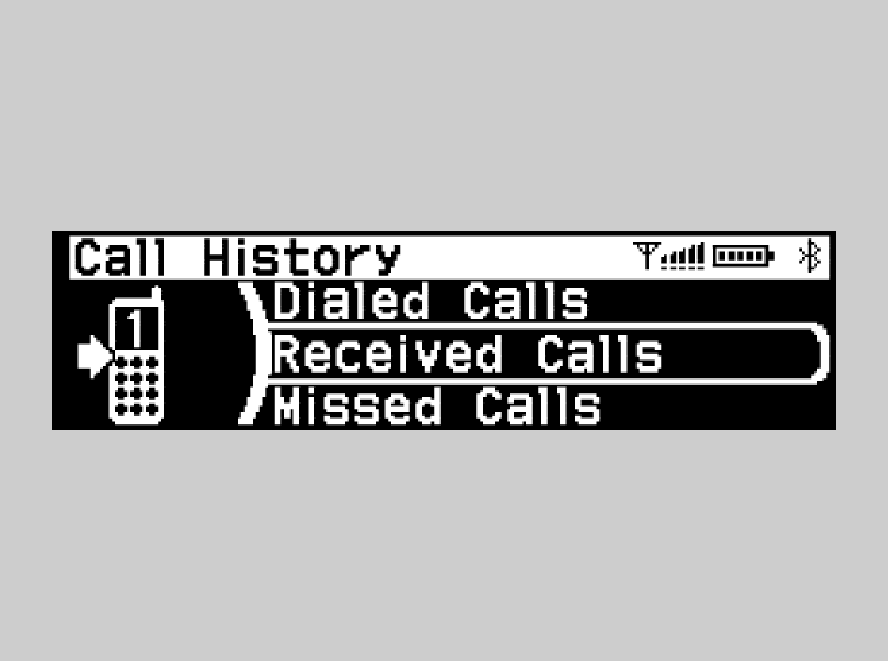

To make a call using the Call History

Models with CD player

The call history is stored by Dialed Calls, Received Calls, and Missed Calls.

  1. Press the button or button*.
  2. Rotate to select Call History, then press .
  3. Rotate to select Dialed Calls, Received Calls, or Missed Calls, then press .
    • The screen changes to each list.
  4. Rotate to select a number, then press .
    • Dialing starts automatically.
Detail
The call history appears only when a phone is connected to the system, and displays the last 10 dialed, received, or missed calls.
Models without CD player

The call history is stored by Dialed, Received, and Missed.

  1. Press the button.
  2. Rotate to select Call History, then press .
  3. Rotate to select Dialed, Received, or Missed, then press .
    • The screen changes to each list.
  4. Rotate to select a number, then press .
    • Dialing starts automatically.

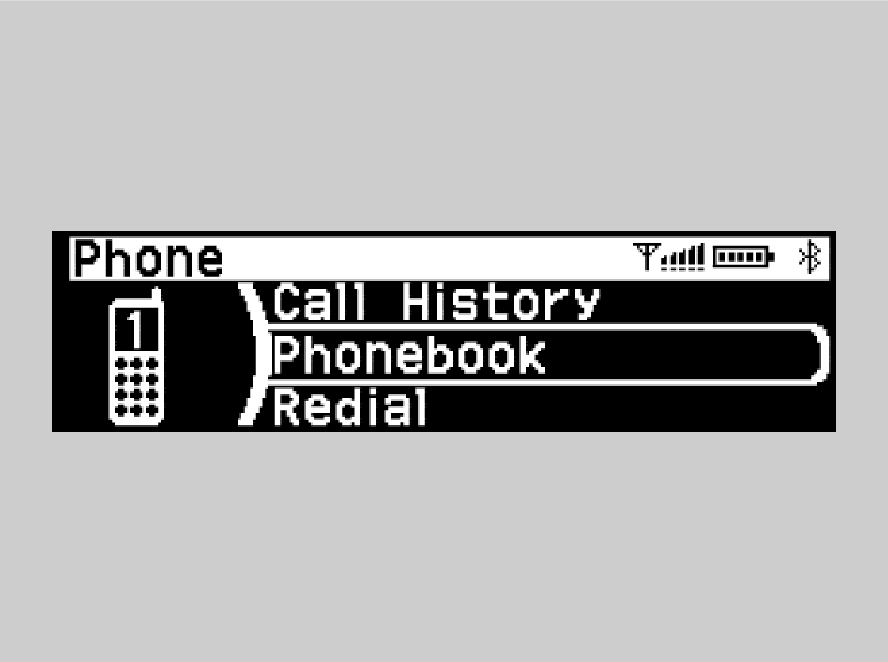

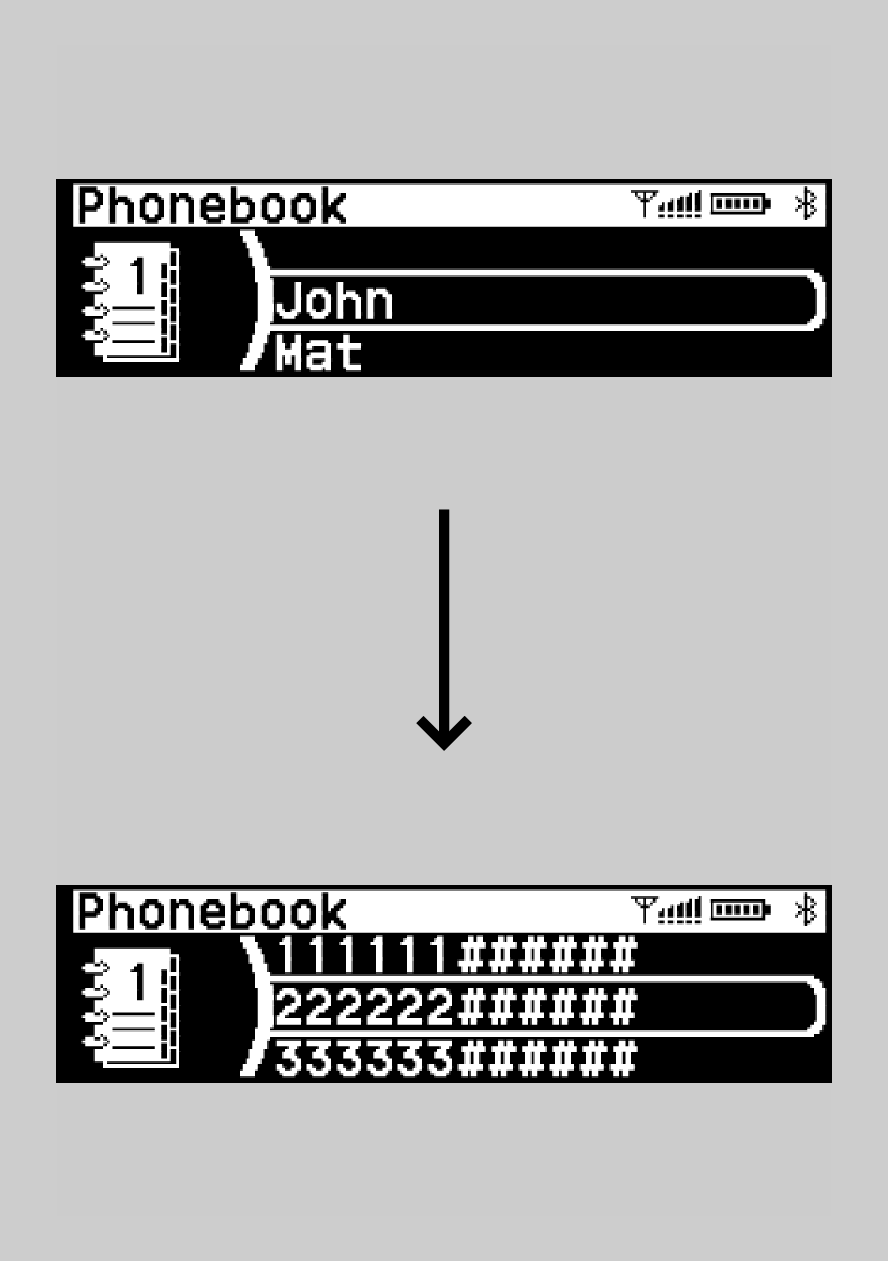

To make a call using the phonebook

  1. Models with CD player
    Press the (Phone) button or the button*.
    Models without CD player
    Press the button.
  1. Rotate to select PhoneBook, then press .
    Models with CD player
    • The phonebook is stored alphabetically.
    Models without CD player
    • A number is selected from the phonebook.
  2. Rotate to select a name on the list, then press .
  3. Rotate to select a number on the list, then press .
    • Dialing starts automatically.
Detail
Models with CD player
When your phone is paired, the contents of its phonebook are manually imported to the system.

To make a call using a speed dial entry

Models with CD player
  1. Press the (Phone) button or the button*.
  2. Rotate to select Speed Dial, then press .
  3. Rotate to select a number, then press .
    • Dialing starts automatically.

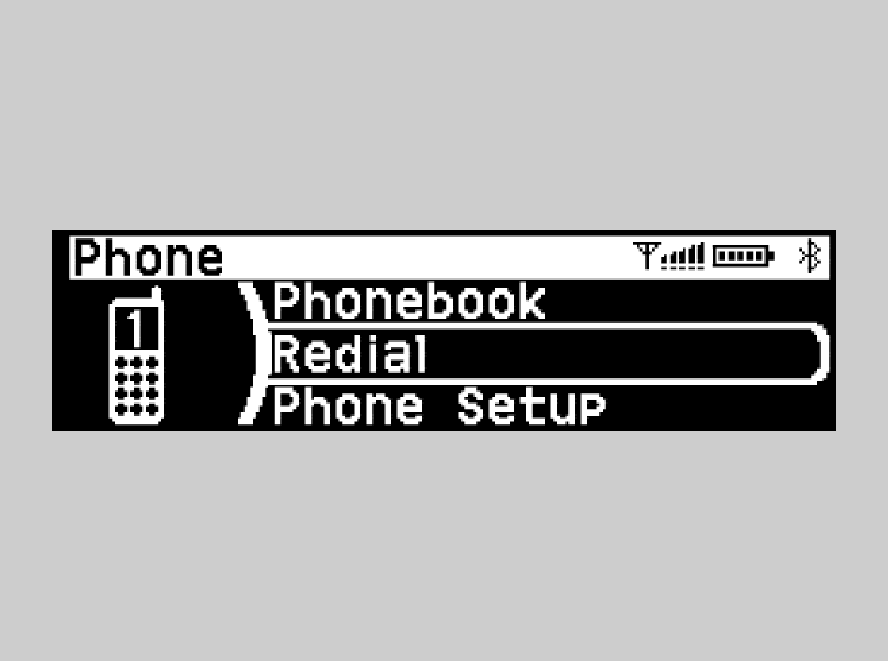

To make a call using redial

Models with CD player

The latest dialed call can be redialed.

  1. Press the (Phone) button or the button*.
  2. Rotate to select Redial, then press .
    • Dialing starts automatically.

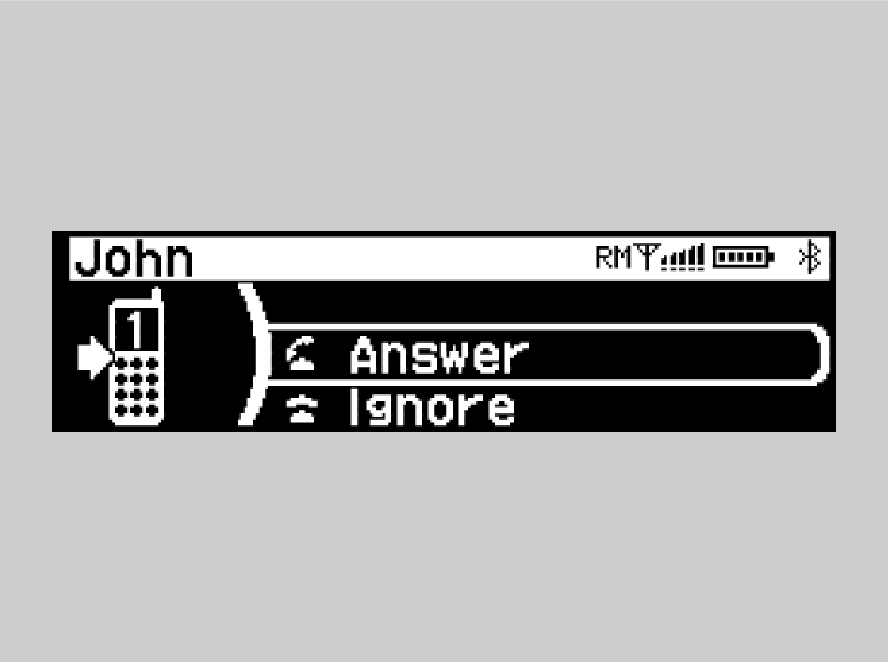

Receiving a Call

When there is an incoming call, an audible notification sounds and the Incoming Call screen appears.
Models with CD player
Press the button* to answer the call.
Press the button* to decline or end the call.
Press the button to answer the call. Press it again to decline or end the call.
Models without CD player
Press the button to answer the call.
Press the button to decline or end the call.
Detail
Call Waiting
Press the button to put the current call on hold to answer the incoming call.
Press the button again to return to the current call.
Select Ignore to ignore the incoming call if you do not want to answer it.
Press the button if you want to hang up the current call.

You can select the icons on the audio/information screen instead of the and buttons. Rotate to select the icon, then press .

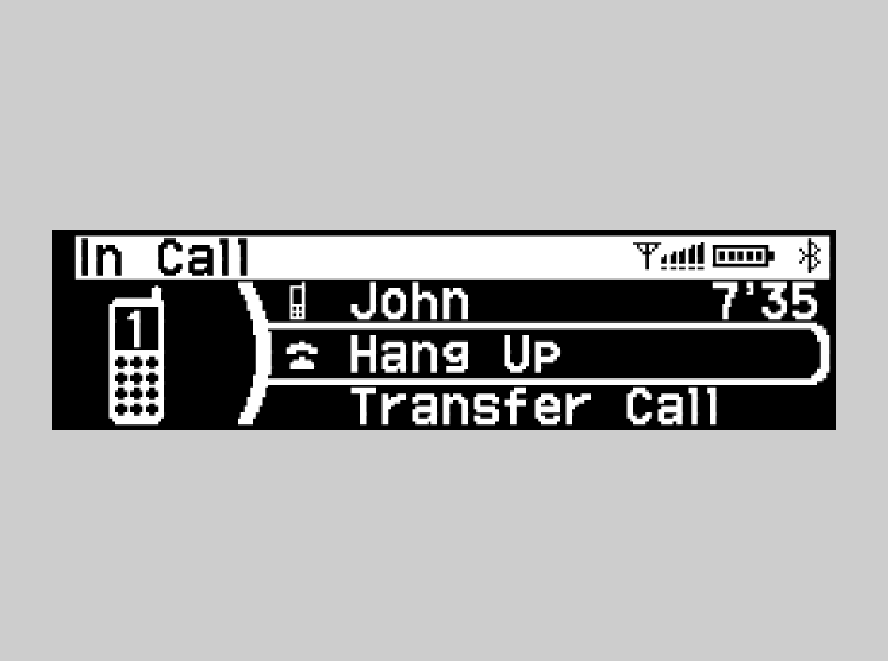

Options During a Call

The following options are available during a call.

Mute: Mute your voice.

Transfer Call: Transfer a call from the system to your phone.

Dial Tone*: Send numbers during a call. This is useful when you call a menu-driven phone system.

  1. Models with CD player
    To view the available options, press the (Phone) button or the button*.
    Models without CD player
    To view the available options, press the button.
  2. Rotate to select the option, then press .
    • Select Mute to turn on, then select Mute again to turn it off.
Detail
Dial Tone*: Available on some phones.

You can select the icons on the audio/information screen.

* Not available on all models
