Fuse Locations

If any electrical devices are not working, turn the ignition switch to LOCK 0*1 and check to see if any applicable fuse is blown.

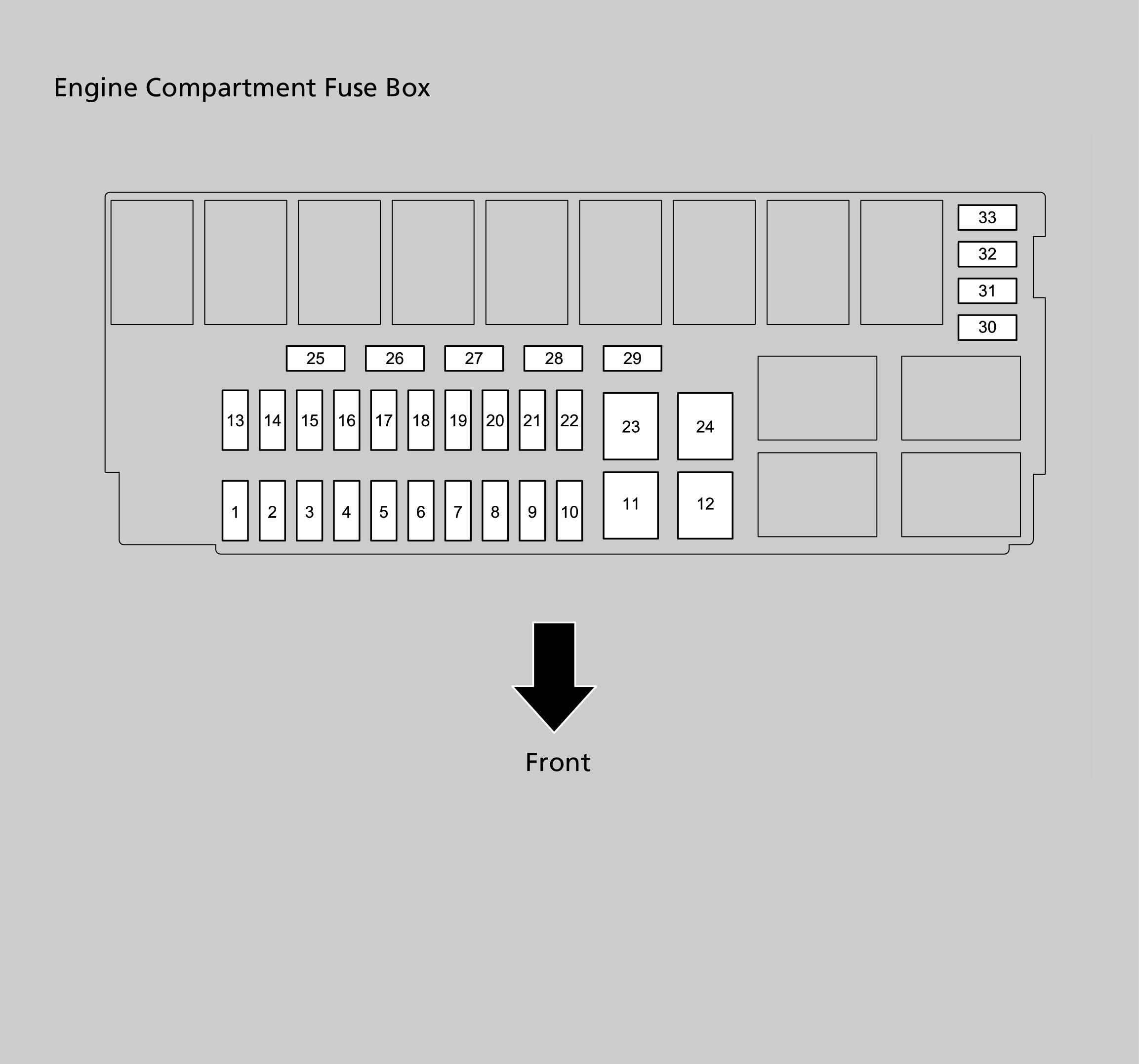

Engine Compartment Fuse Box

Fuse Box A

Models with fuse location marks

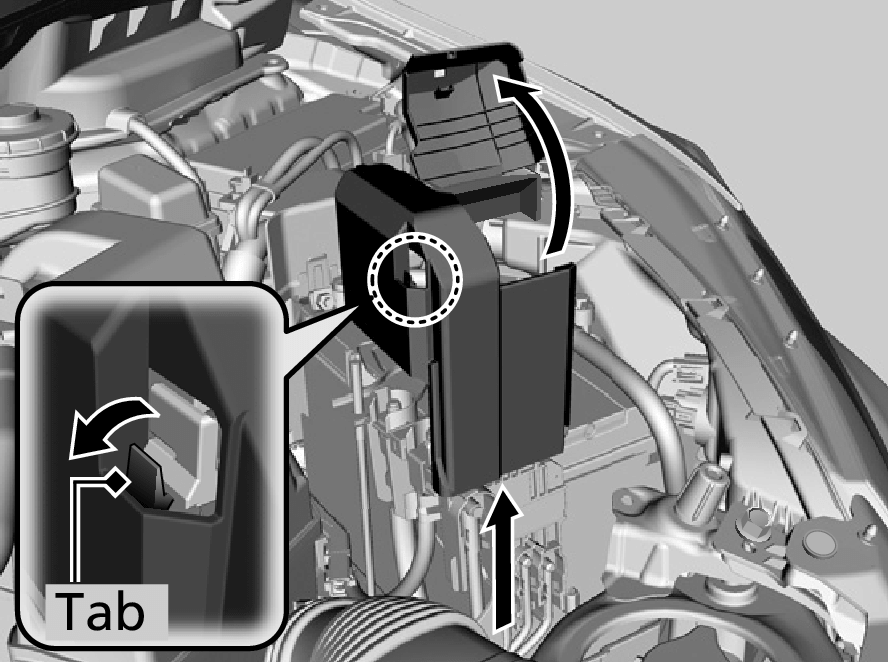

Located in the back side of the engine compartment on the left side. Push the tabs to open the box.Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

*1 : Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.

Circuit protected and fuse rating

Circuit Protected
Amps
1
Headlight Low Beam Main
20 A
2
CDC*
(30 A)
3
Hazard
10 A
4
DBW
15 A
5
Wiper
(30 A)
6
Stop
10 A
7
IGP
15 A
8
IG Coil
15 A
9
ECP*
(10 A)
10
INJ*
(20 A)
11
12
Main Fan
30 A
13
Starter SW*
(30 A)
14
MG Clutch
7.5 A
15
Battery Sensor*
(7.5 A)
16
17
18
Horn
10 A
19
Fog Light*
(15 A)
20

Circuit Protected
Amps
21
Back Up Main
15 A
22
Interior Light
7.5 A
23
Sub Fan
(30 A)
24
25
Starter
(7.5 A)
26
ST MG
(7.5 A)
27
28
29
Back Up
(10 A)
30
IGP LAF
(10 A)
31
IGPS
(7.5 A)
32
Right Headlight Low Beam
10 A
33
Left Headlight Low Beam
10 A
Models without fuse location marks

Located in the back side of the engine compartment on the left side. Push the tabs to open the box.

Locate the fuse in question by the following image and table.

Petrol models

Circuit protected and fuse rating

Circuit Protected
Amps
1
Headlight Low Beam Main
20 A
2
3
Hazard
10 A
4
DBW
15 A
5
6
Stop
10 A
7
IGP
15 A
8
IG Coil
15 A
9
10
11
12
Main Fan
30 A
13
14
MG Clutch
7.5 A
15
16
17
IGP2
10 A
18
Horn
10 A
19
Fog Lights*
15 A
20

Circuit Protected
Amps
21
Back Up Main
15 A
22
Interior Lights
7.5 A
23
Sub Fan
30 A
24
25
26
ST MG
7.5 A
27
28
29
Back Up
10 A
30
IGP LAF
10 A
31
IGPS
7.5 A
32
Right Headlight Low Beam
10 A
33
Left Headlight Low Beam
10 A
Diesel models

Circuit protected and fuse rating

Circuit Protected
Amps
1
Headlight Low Beam Main
20 A
2
3
Hazard
10 A
4
5
6
Stop
10 A
7
IGP
20 A
8
IGP2
15 A
9
10
11
12
Main Fan
30 A
13
14
MG Clutch
7.5 A
15
16
17
18
Horn
10 A
19
Fog Lights*
(15 A)
20
Back Up FI-ECU
7.5 A

Circuit Protected
Amps
21
Back Up Main
15 A
22
Interior Lights
7.5 A
23
Sub Fan
30 A
24
25
26
ST MG
7.5 A
27
IGP LAF
7.5 A
28
29
Back Up
10 A
30
31
32
Right Headlight Low Beam
10 A
33
Left Headlight Low Beam
10 A

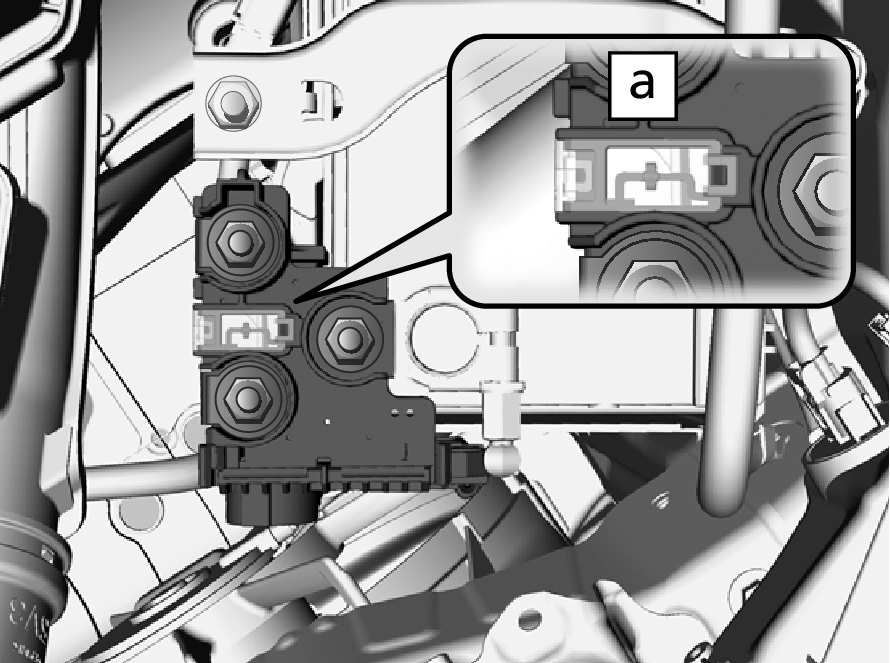

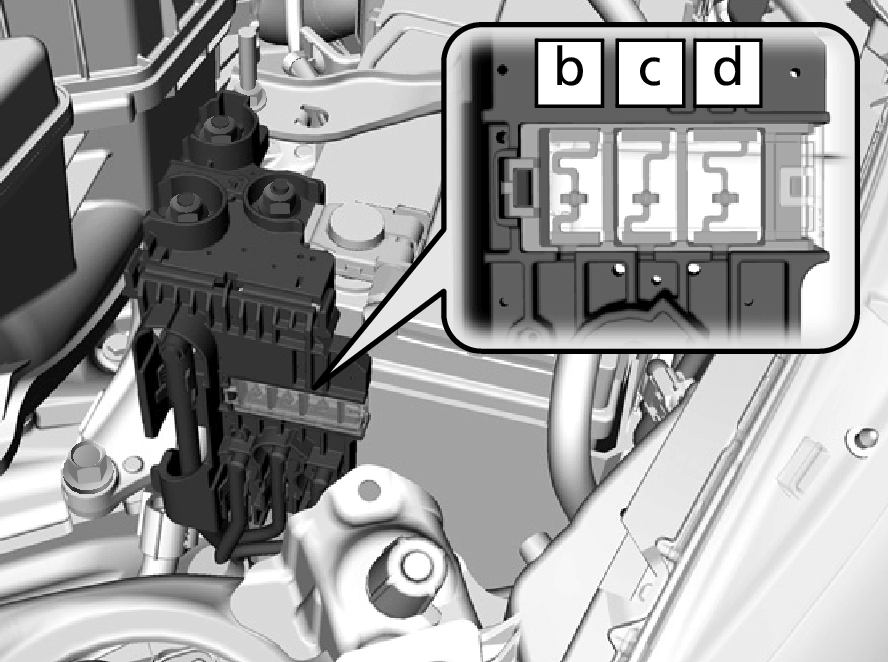

Fuse Box B

Petrol models
Pull up the cover on the  +  terminal, then remove it while pulling out the tab as shown.Replacement of engine compartment fuses should be done by a dealer.

Circuit protected and fuse rating

Circuit Protected
Amps
a
Battery Main
100 A
b
RB Main 1
70 A
c
RB Main 2
80 A
d
CAP Main
70 A
Diesel models
Pull up the cover on the  +  terminal, then remove it while pulling out the tab as shown.Locate the fuse in question by the following image and table.Replacement of engine compartment fuses should be done by a dealer.

Circuit protected and fuse rating

Circuit Protected
Amps
a
Battery Main
100 A
b
RB Main 1
70 A
c
RB Main 2
80 A
d
Grow
60 A
South African models

Interior Fuse Box

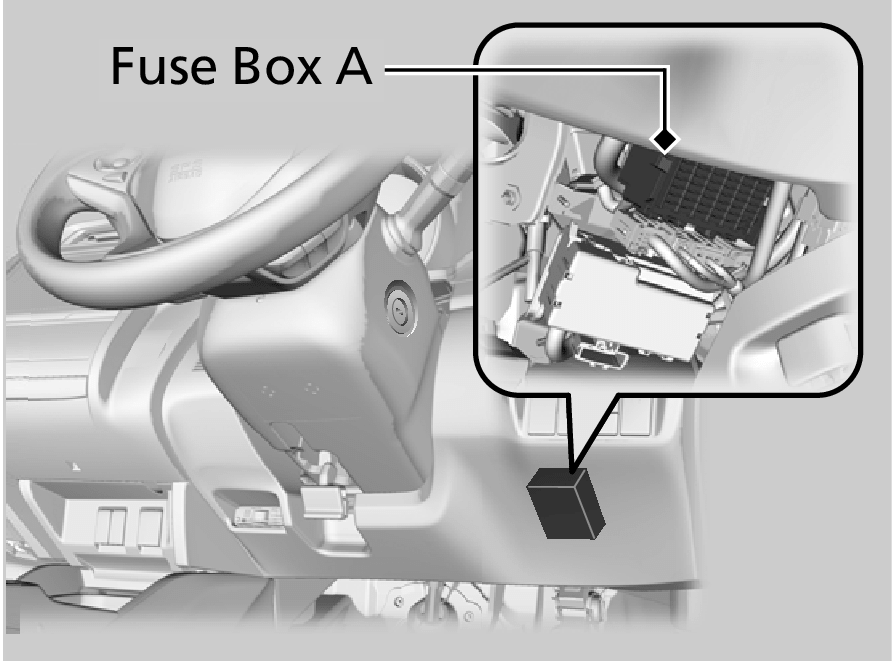

Fuse Box A

Located behind the instrument panel.Locate the fuse in question by the following image and table.

Circuit protected and fuse rating

Circuit Protected
Amps
1
Door Lock
20 A
2
3
4
Left Side Door Unlock
15 A
5
Right Side Door Unlock
15 A
6
Driver Door Unlock
10 A
7
Driver Door Lock
10 A
8
Driver’s Power Window
20 A
9
Passenger’s Power Window
20 A
10
Rear Left Power Window
20 A
11
Rear Right Power Window
20 A
12
Left Side Door Lock
15 A
13
Right Side Door Lock
15 A
14
15
Right Headlight High Beam
10 A
16
STS
7.5 A
17
18
19
20

Circuit Protected
Amps
21
22
Washer
15 A
23
24
A/C
7.5 A
25
26
Starter Cut
7.5 A
27
ABS/VSA
7.5 A
28
SRS
10 A
29
Left Headlight High Beam
10 A
30
ACG
10 A
31
Power Window
10 A
32
Fuel Pump
15 A
33
34
Meter
7.5 A
35
Mission SOL
7.5 A
36
Front ACC Socket
20 A
37
ACC
7.5 A
38
ACC Key Lock
7.5 A
39
Option
10 A
40
Rear Wiper
10 A

Circuit Protected
Amps
41
42

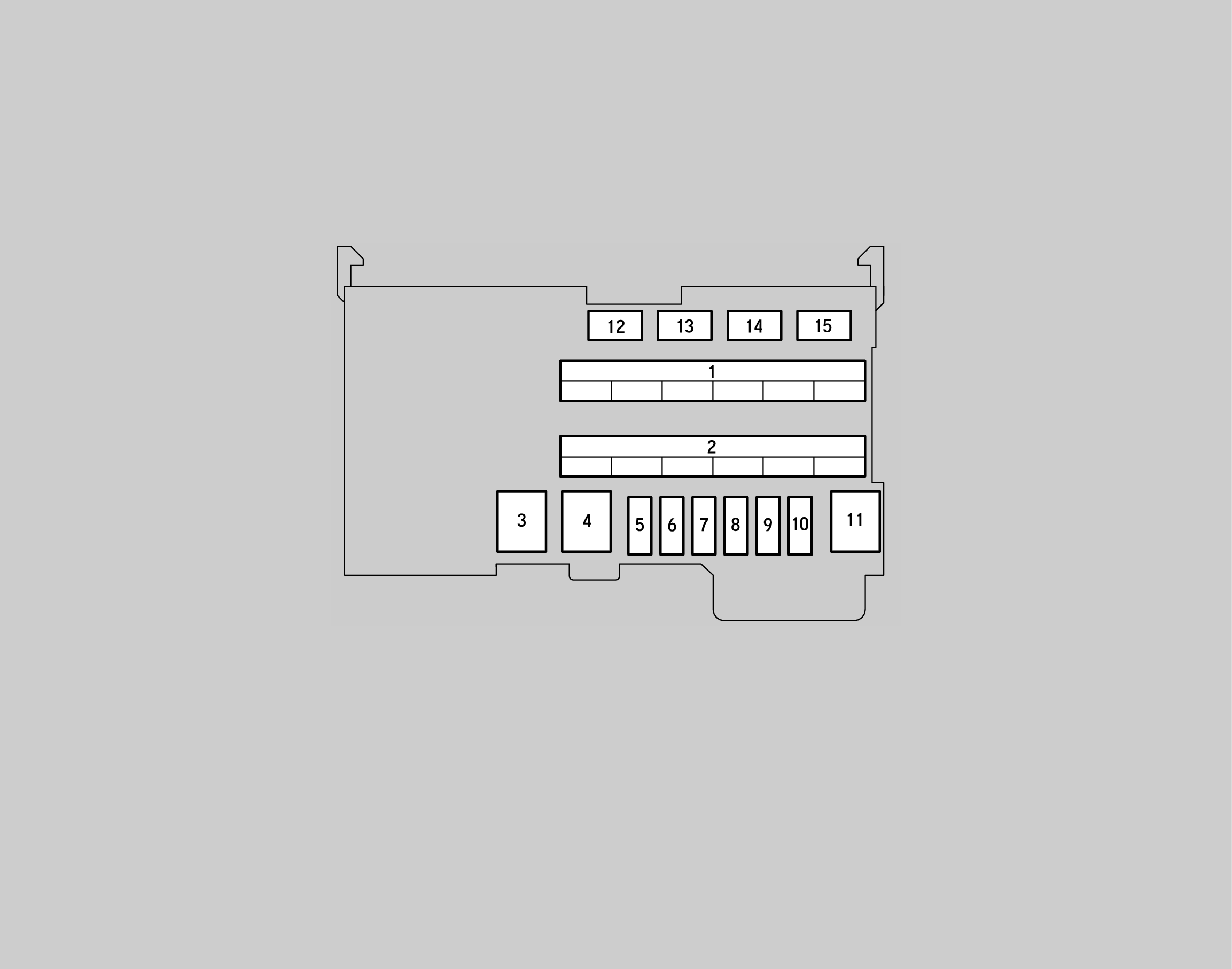

Fuse Box B

Remove the cover by putting the flat-tip screwdriver into the side slot as shown.Locate the fuse in question by the following image and table.

Circuit protected and fuse rating

Circuit Protected
Amps
1
EPS
60 A
IG Main
50 A
Fuse Box Main 2
50 A
ABS/VSA Motor
40 A
Fuse Box Main 1
30 A
Fuse Box Main 3
40 A
2

Circuit Protected
Amps
3
Heater
30 A
4
5
ABS/VSA FSR
30 A
6
7
8
9
Small Light
10 A
10
11
Rear Demister
30 A
12
13
14
A/C Blower SW
7.5 A
15
IG1 Main, Wiper
30 A
Except South African models

Interior Fuse Box

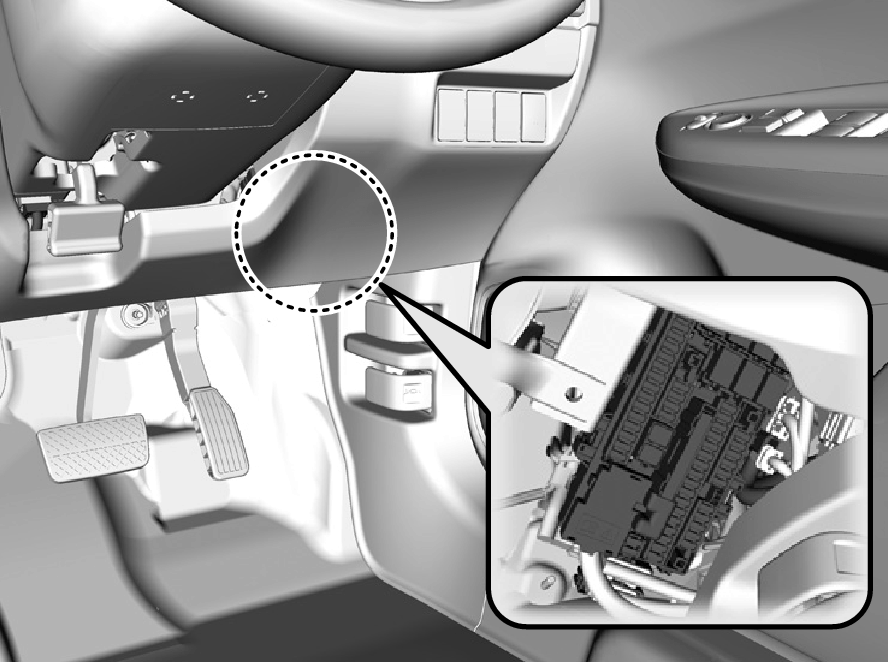

Models with interior fuse box label
Located behind the instrument panel.Fuse locations are shown on the label under the steering column.Locate the fuse in question by the fuse number and label number.

Circuit protected and fuse rating

Circuit Protected
Amps
1
Driver’s Power Window
(20 A)
2
Headlight High Main
(20 A)
3
ABS/VSA* FSR
(30 A)
4
Rear Wiper
(10 A)
5
Small Light
(10 A)
6
Door Lock
(20 A)
7
8
9
(20 A)
10
Washer
(15 A)
11
Power Window
DR and AS Auto
(20 A)
12
HAC OP
(20 A)
13
Centre Accessory Socket*
(20 A)
14
Rear Fog Light*
(10 A)
15
(20 A)
16*1
IG Main
(30 A)
16*2
17
18
19*1
Keyless Access System*
(10 A)
19*2
20

Circuit Protected
Amps
21
22
ABS/VSA MTR
(40 A)
23
Heater Motor
(30 A)
24
Power Window Main
(40 A)
25*1
Ignition
(30 A)
25*2
Ignition
(50 A)
26
Rear Demister
(30 A)
27
Electric Power Steering (EPS)
(60 A)
28
Front Wiper (Low)
(7.5 A)
29
30
IG2
(7.5 A)

*1 : Models with keyless access system

*2 : Models without keyless access system

Circuit Protected
Amps
31
Blower
(7.5 A)
32
Left Headlight High Beam
(10 A)
33
Right Headlight High Beam
(10 A)
34
Right Side Door Lock
(15 A)
35
Left Side Door Lock
(15 A)
36
Right Side Door Unlock
(15 A)
37
Left Side Door Unlock
(15 A)
38
ACC
(7.5 A)
39
Accessory Power Socket
(20 A)
40
Rear Left Power Window
(20 A)

Circuit Protected
Amps
41
Rear Right Power Window
(20 A)
42
Front Passenger’s Power Window
(20 A)
43*1
43*2
ACC Main
(7.5 A)
44
45
MISS SOL*
(7.5 A)
46
Meter
(7.5 A)
47
Rear Wiper
(10 A)
48
SRS
(10 A)
49
50*1
50*2
Front Wiper
(30 A)
51
IG1 Starter*
(7.5 A)
52
IG1 Option
(10 A)
53
ABS/VSA*
(7.5 A)
54
ACG
(10 A)
55
Fuel Pump
(15 A)

*1 : Models with keyless access system

*2 : Models without keyless access system

Models without interior fuse box label

Located behind the instrument panel.

Locate the fuse in question by the following image and table.

Petrol models

Circuit protected and fuse rating

Circuit Protected
Amps
1
Driver’s Power Window
(20 A)
2
Headlight High Main
(20 A)
3
ABS FSR
(30 A)
4
5
Small Light
(10 A)
6
Door Lock
(20 A)
7
8
9
10
Washer
(15 A)
11
12
HAC OP
(20 A)
13
14
15
16
17
18
19
20

Circuit Protected
Amps
21
22
ABS MTR
(40 A)
23
Heater Motor
(30 A)
24
Power Window Main
(40 A)
25
Ignition Main
(50 A)
26
Rear Demister
(30 A)
27
Electric Power Steering (EPS)
(60 A)
28
Front Wiper (Low)
(7.5 A)
29
30
IG2
(7.5 A)
31
Blower
(7.5 A)
32
Left Headlight High Beam
(10 A)
33
Right Headlight High Beam
(10 A)
34
Right Side Door Lock
(15 A)
35
Left Side Door Lock
(15 A)
36
Right Side Door Unlock
(15 A)
37
Left Side Door Unlock
(15 A)
38
ACC
(7.5 A)
39
Accessory Power Socket
(20 A)
40
Rear Left Power Window
(20 A)

Circuit Protected
Amps
41
Rear Right Power Window
(20 A)
42
Front Passenger’s Power Window
(20 A)
43
ACC Main
(7.5 A)
44
45
MISS SOL*
(7.5 A)
46
Meter
(7.5 A)
47
Rear Wiper
(10 A)
48
SRS
(10 A)
49
50
Front Wiper
(30 A)
51
52
IG1 Option
(10 A)
53
ABS
(7.5 A)
54
ACG
(10 A)
55
Fuel Pump
(15 A)
Diesel models

Circuit protected and fuse rating

Circuit Protected
Amps
1
Driver's Power Window
(20 A)
2
Headlight High Main
(20 A)
3
ABS FSR
(30 A)
4
5
Small Light
(10 A)
6
Door Lock
(20 A)
7
8
9
10
Washer
(15 A)
11
12
HAC
13
14
15
16
17
18
19
20

Circuit Protected
Amps
21
22
ABS MTR
(40 A)
23
Heater Motor
(30 A)
24
Power Window Main
(40 A)
25
Ignition Main
(50 A)
26
Rear Demister
(30 A)
27
Electric Power Steering (EPS)
(60 A)
28
Front Wiper (Low)
(7.5 A)
29
STS
(7.5 A)
30
IG2
(7.5 A)
31
Blower
(7.5 A)
32
Left Headlight High Beam
(10 A)
33
Right Headlight High Beam
(10 A)
34
Right Side Door Lock
(15 A)
35
Left Side Door Lock
(15 A)
36
Right Side Door Unlock
(15 A)
37
Left Side Door Unlock
(15 A)
38
ACC
(7.5 A)
39
Accessory Power Socket
(20 A)
40
Rear Left Power Window
(20 A)

Circuit Protected
Amps
41
Rear Right Power Window
(20 A)
42
Front Passenger's Power Window
(20 A)
43
44
45
46
Meter
(7.5 A)
47
Rear Wiper
(10 A)
48
SRS
(10 A)
49
FI ECU
(7.5 A)
50
Front Wiper
(30 A)
51
52
IG1 Option
(10 A)
53
ABS
(7.5 A)
54
ACG
(10 A)
55
Fuel Pump
(15 A)

* Not available on all models


Inspecting and Changing Fuses

  1. Turn the ignition switch to LOCK 0*1. Turn headlights and all accessories off.
  2. Check the fuses on the battery in the engine compartment.
    • If the fuse is blown, have it replaced by a dealer.
  1. Remove the fuse box cover.
  2. Inspect the small fuses in the engine compartment and the vehicle interior.

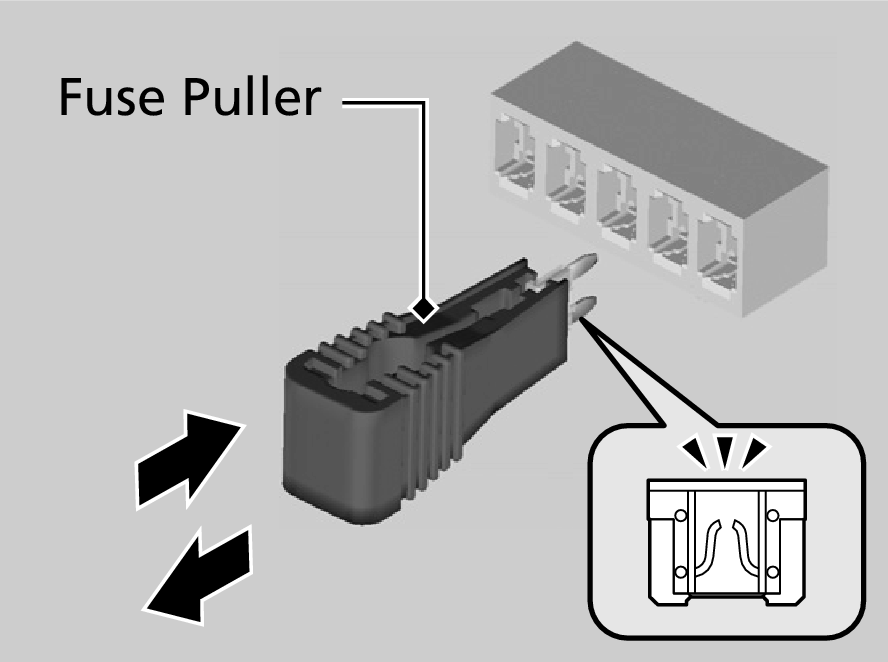

    • If there is a burned out fuse, remove it with the fuse puller* and replace it with a new one.

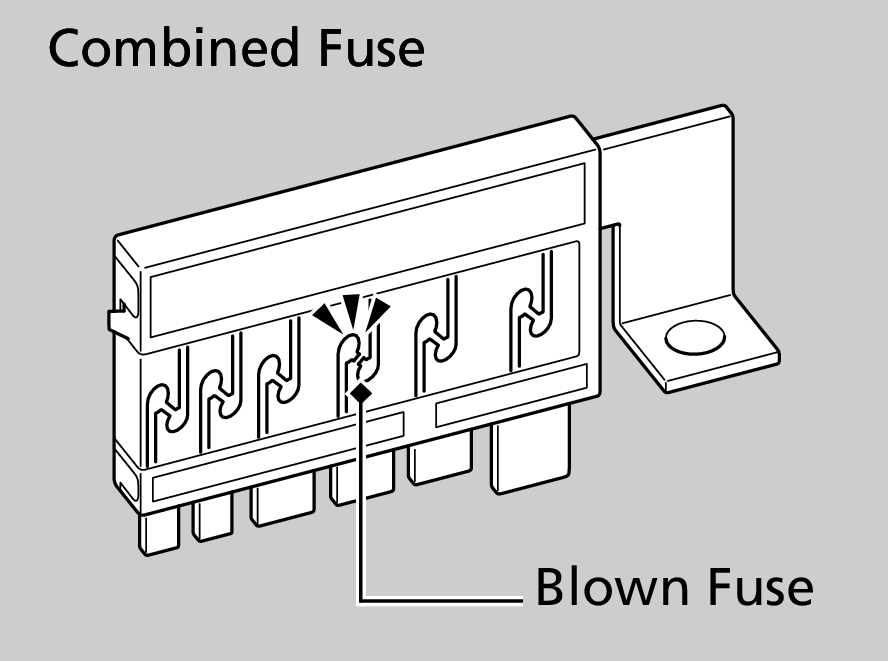

  1. Check the large fuse in the vehicle interior.
    • If the fuse is blown, use a Phillips-head screwdriver to remove the screw and replace it with a new one.

*1 : Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.

Detail

NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.


Replace fuse with a spare fuse of the same specified amperage.
Confirm the specified amperage using the charts on Fuse Locations.

There is a fuse puller* on the back of the engine compartment fuse box cover.

* Not available on all models

Recommend page
