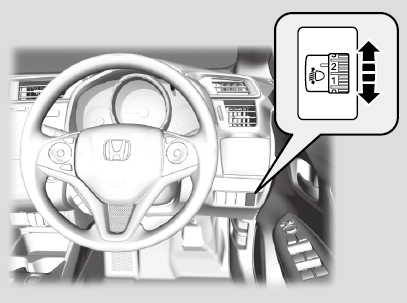

Headlight Adjuster
- You can adjust the vertical angle of the low beam headlights when the ignition switch is in ON II.
Turn the adjusting dial to select an appropriate angle of the headlights.
The larger dial number indicates the lower angle.- Push the dial to pop it out, then turn it to select a number.
- Push it again after selecting.
-
To select the adjustment dial position
Refer to the below table for the appropriate dial position for your vehicle's riding and loading conditions.
|
Condition
|
Dial position
|
|---|---|
|
A driver
|
0
|
|
A driver and a front passenger
|
|
|
Five persons in the front and rear seats
|
1
|
|
Five persons in the front and rear seats and luggage in the luggage area, within the limits of maximum permissible vehicle weight and maximum permissible axle weight
|
2
|
|
A driver and luggage in the luggage area, within the limits of maximum permissible vehicle weight and maximum permissible axle weight
|
3
|
