Brake Light, Taillight, Back-Up Light and Rear Turn Signal Light Bulbs

When replacing, use the following bulbs.

Brake Light:
21 W

5 W

Back-Up Light:
16 W

Rear Turn Signal Light:
21W (Amber)

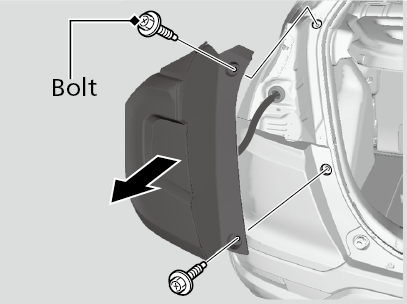

  1. Use a Phillips-head screwdriver to remove the bolts.
  2. Pull the light assembly out of the rear pillar.

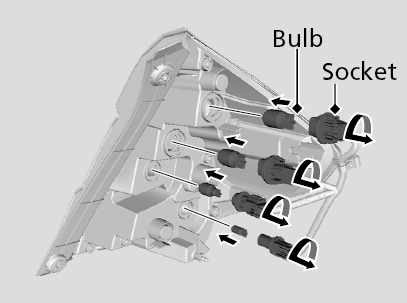

  1. Turn the socket to the left and remove it. Remove the old bulb.
  2. Insert a new bulb.
  3. Slide the light assembly onto the guide on the body.
